100W Solar Generator Details

Sep. 05, 2024

The 100W solar generator is our company's latest mini power station, which is very small and lightweight, with a battery capacity of 76.8 watt hours. When purchasing this 100W portable power station in bulk, you can choose our company's brand: TL EAGLE, or use your own company brand. At the same time, you can also choose the color of the shell you like, the text and pattern of the packaging you like, and, Power outlets are used for power plants, and you can choose different AC power outlets according to different sales regions, such as general AC power outlets, British AC power outlets, American AC power outlets, EU AC power outlets, CCC AC power outlets, Brazil AC power outlets, South Africa AC power outlets, etc.This 100 watt solar power station uses a lithium iron phosphate (Life PO4) battery with a battery rating of A+. It also supports a 20W solar panel and USB connection for charging, making it very lightweight.Among the known, available, and of the same grade solar generator products in the current market, the 100 watt solar generator is the most cost-effective portable generator our company has launched.

Precautions when using a 100W solar generator

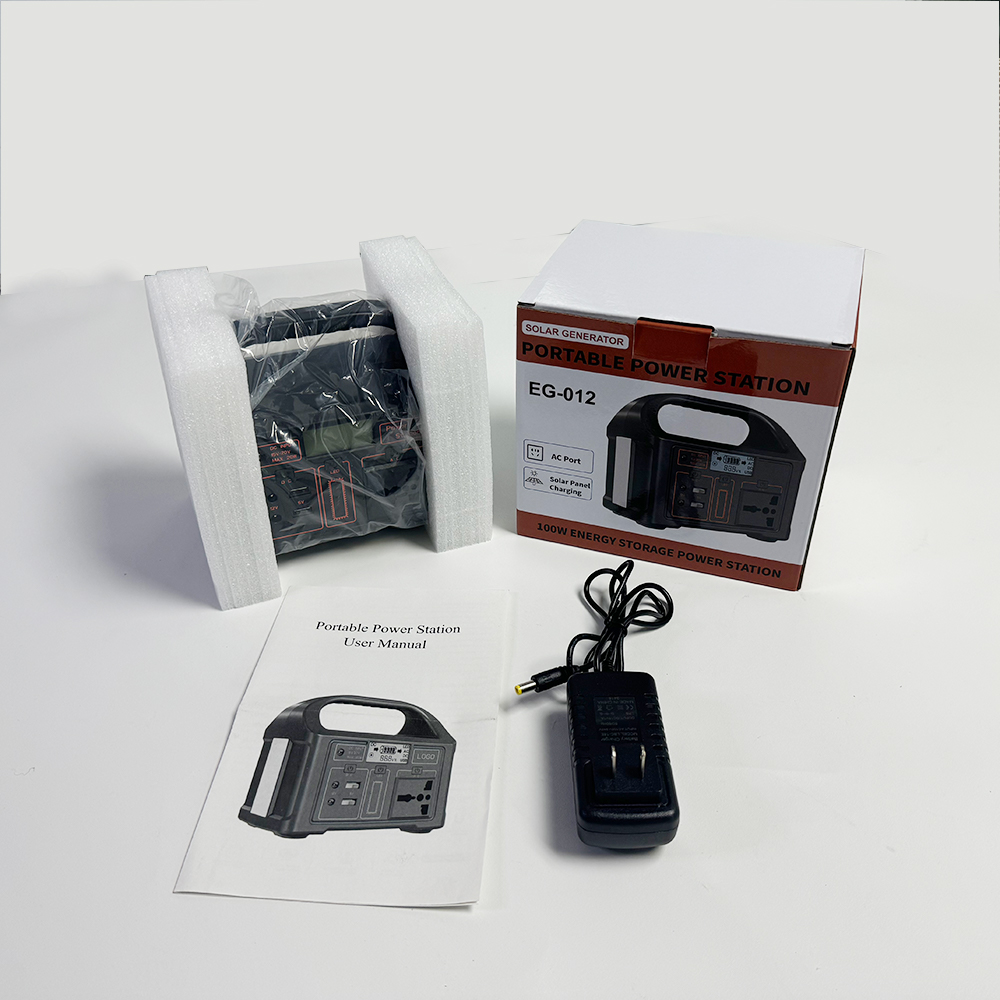

1. Open the package and check whether the following accessories are complete
1*Portable Power Station;1*Charging Cable;1*User Manual;1*Qualified Certificate;
Please check carefully whether the portable power station device is damaged during transportation. If you find that the device is damaged or parts are missing, please do not start the device, and immediately notify the carrier and dealer.

2. The portable power station device should be placed in a well-ventilated place away from water, flammable gases and corrosive substances.

3. Do not place it on its side, keep the bottom and panel of the portable power station uncovered.

4. The panel temperature and the working environment temperature of the portable power station should be kept between 0～40℃.
5. If the portable power station device is disassembled and used at low temperature, water condensation may occur. It
must be used until the inside and outside of the device are completely dry, otherwise there will be a danger of electric
shock.

100W Solar Generator Details

100w power station points for attention

1.The portable power station device has high voltage AC output, which is potentially dangerous and must be handled with care and kept away from children, otherwise there will be a risk of electric shock.

2.Do not connect the inverter of the portable power station to the AC circuit, otherwise even if the switch of the device is turned off, the inverter of the device may be damaged.

3.Please ensure that the power used by the electrical appliance is less than the rated output power of the portable power station device.

4.Before the load is connected to the portable power station device, be sure to turn off the load switch before connecting it, and then turn on the load switch for use.

5.It is recommended to charge the portable power station device for at least 10 hours before use. Insert the AC adapter charger into the portable power station’s charging port when charging. The portable power station device can also be used without charging, but the backup time will be less than the standard backup time.

6.It is prohibited to connect half wave (hair dryer, electric heating wire heater) load, high-power motor, laser printer, high-power rectifier load. The portable power station will be automatically protected because of the excessive starting power during operation.

100W Solar Generator Details

100-watt solar power generator operation method:

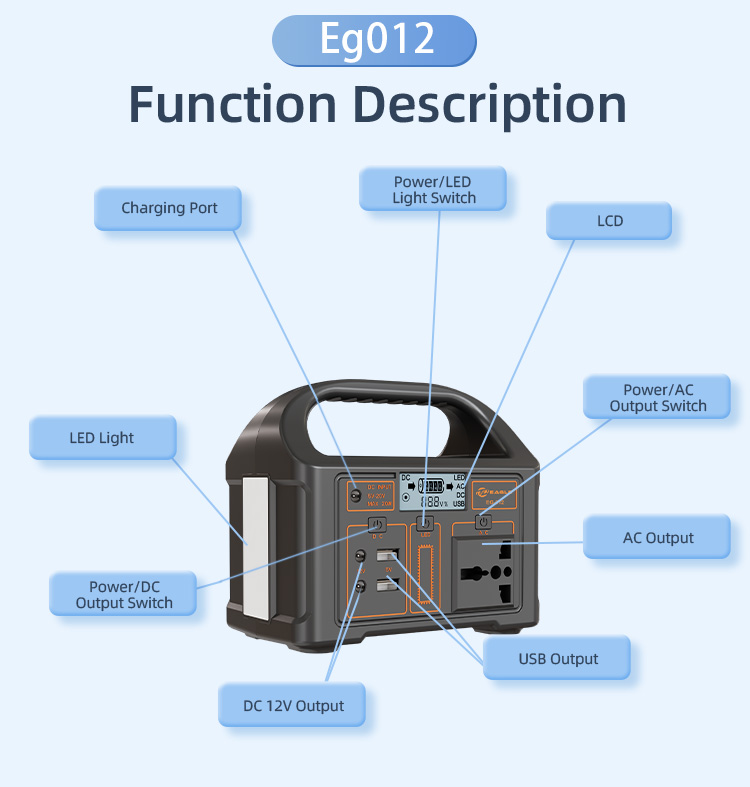

Power on:
1. When there is no charging, press the power switch on the panel for more than 1 second, release it after the LCD display lights up, and then press the corresponding function switch at this time, there will be a corresponding output.
2. If solar energy and DC charger are connected, the LCD screen will light up automatically. At this time, click any key and there will be corresponding output.
Power off:
1. When there is no charging, press and hold the power switch on the panel for more than 3 seconds, release it after the LCD screen goes out, and then shut the portable power station down.
2. If the solar energy and DC charger are connected, the LCD cannot be turned off, so turn off the corresponding function switches and turn off each output.
3. When there is no charging and no output switches are turned on, it will automatically shut down after 10 seconds.
Note: The portable power station has DC under voltage and over voltage protection functions. When the battery is under voltage or over voltage, it will automatically shut down.
