Voltage covers : 12V , 24V ,48V
Capacity : from 7Ah to 200Ah
Cycle life :2500 cycles at 80% DOD
Features and Benefits
Environmental friendly
Wide operating temperature range from -10℃ to 60℃
High energy density
Low self-discharge rate
Long cycle life
Light-weight
No memory effect
Waterproof
Accept customization
Construction
Battery container and cover - ABS
Inside battery cell - 18650 Ternary lithium battery or LiFePO4
Protection board - PCM
Charging
Fully charge voltage (FC) : 12.6V
Standard Charging current : 0.2C
Standard Charging method: 0.2C CC(constant current) charge to FC , then CV(constant voltage FC) charge till current decline to ≤0.01C
Max. Charge Current : 0℃~15℃ : 0.1C, 15℃~45℃ : 0.5C
Discharging
Fully discharge voltage (FD) : 8.25V
Max. Discharge Current : -10℃~15℃ : 0.5C, 15℃~60℃ : 1C
Applications
Torch
Bluetooth Speaker
Radio
UPS

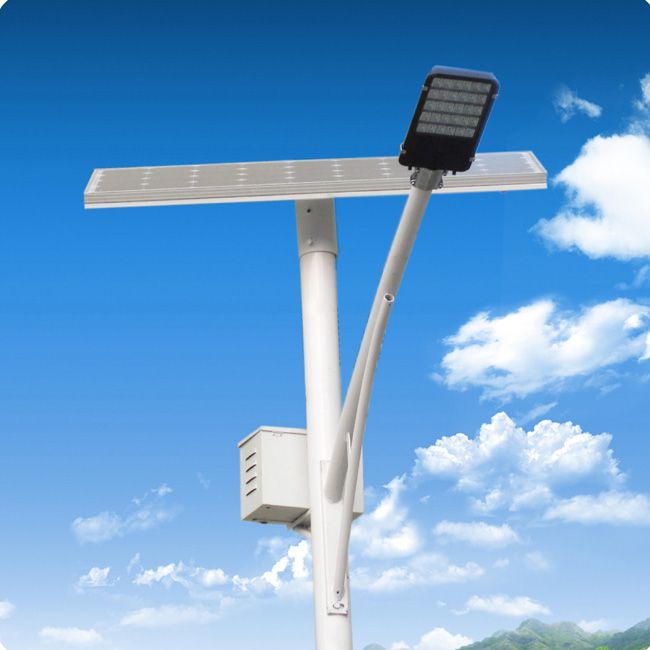

Solar led light
Telecommunication
Renewable Energy System
Other energy storage use

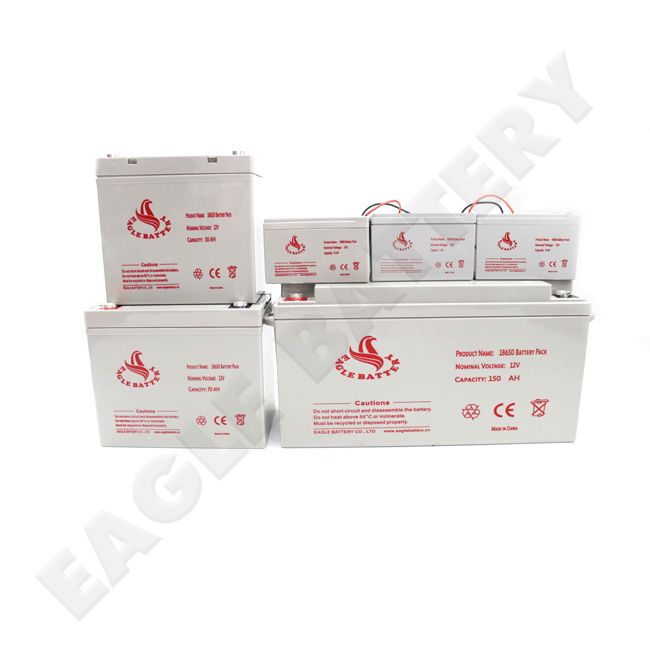

| Model | Normal Voltage | Capacity | Length | Width | Height | Weight | ||||
| V | Ah | mm | in | mm | in | mm | in | kg | lb | |
| ELP12-7 | 12 | 7 | 151 | 5.94 | 65 | 2.56 | 95 | 3.74 | 0.77 | 1.70 |
| ELP12-9 | 12 | 9 | 151 | 5.94 | 65 | 2.56 | 101 | 3.98 | 0.81 | 1.79 |
| ELP12-12 | 12 | 12 | 151 | 5.94 | 98 | 3.86 | 95 | 3.74 | 1.12 | 2.47 |
| ELP12-50 | 12 | 50 | 197 | 7.76 | 165 | 6.50 | 170 | 6.69 | 3.52 | 7.76 |
| ELP12-70 | 12 | 70 | 259 | 10.20 | 169 | 6.65 | 212 | 8.35 | 4.50 | 9.92 |
| ELP12-150 | 12 | 150 | 485 | 19.09 | 172 | 6.77 | 240 | 9.45 | 10.50 | 23.14 |
