Voltage covers : 12V , 24V ,48V
Capacity : from 9Ah to 70Ah
Cycle life : > 2500 cycles at 80% DOD
Features and Benefits
Environmental friendly
Wide operating temperature range from -10℃ to 60℃
High energy density
Low self-discharge rate
Long cycle life
Light-weight
No memory effect
Accept customization

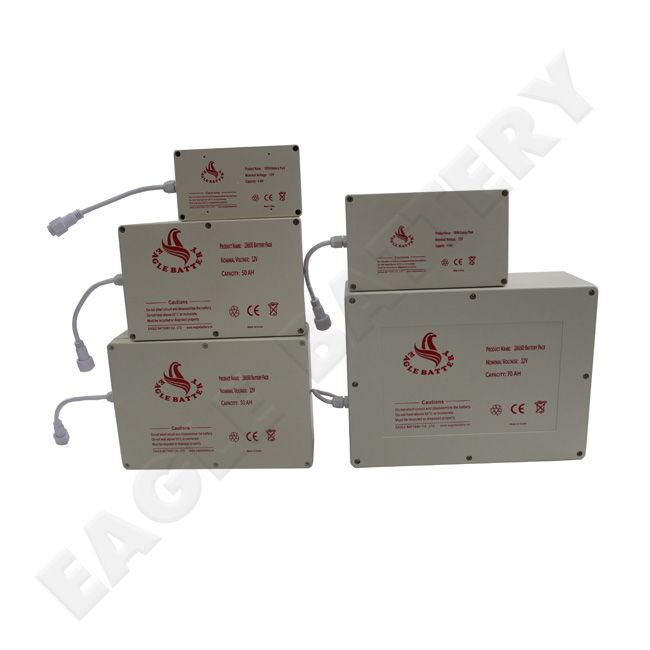

Construction
Battery container and cover –Flame Retardant ABS
Inside battery cell - 18650 Ternary lithium battery or LiFePO4
PCM protection board
Charging
Fully charge voltage (FC) : 12.6V
Standard Charging current : 0.2C
Standard Charging method: 0.2C CC(constant current) charge to FC , then CV(constant voltage FC) charge till current decline to ≤0.01C
Max. Charge Current : 0℃~15℃ : 0.1C, 15℃~45℃ : 0.5C
Discharging
Fully discharge voltage (FD) : 8.25V
Max. Discharge Current : -10℃~15℃ : 0.5C, 15℃~60℃ : 1C
Applications
Photovoltaic System
Renewable Energy System
Solar led light
Residential Energy Storage
Model | Normal Voltage | Capacity | Length | Width | Height | Weight | ||||
V | Ah | mm | in | mm | in | mm | in | kg | lb | |
PV12-9 | 12 | 9 | 156 | 6.14 | 89 | 3.50 | 55 | 2.17 | 0.83 | 1.83 |
PV12-12 | 12 | 12 | 200 | 7.87 | 120 | 4.72 | 75 | 2.95 | 1.60 | 3.53 |
PV12-50 | 12 | 50 | 230 | 9.06 | 150 | 5.91 | 84 | 3.31 | 2.30 | 5.07 |
PV12-50 | 12 | 50 | 265 | 10.43 | 185 | 7.28 | 96 | 3.78 | 4.30 | 9.48 |
PV12-70 | 12 | 70 | 320 | 12.60 | 240 | 9.45 | 113 | 4.45 | 5.90 | 13.00 |
